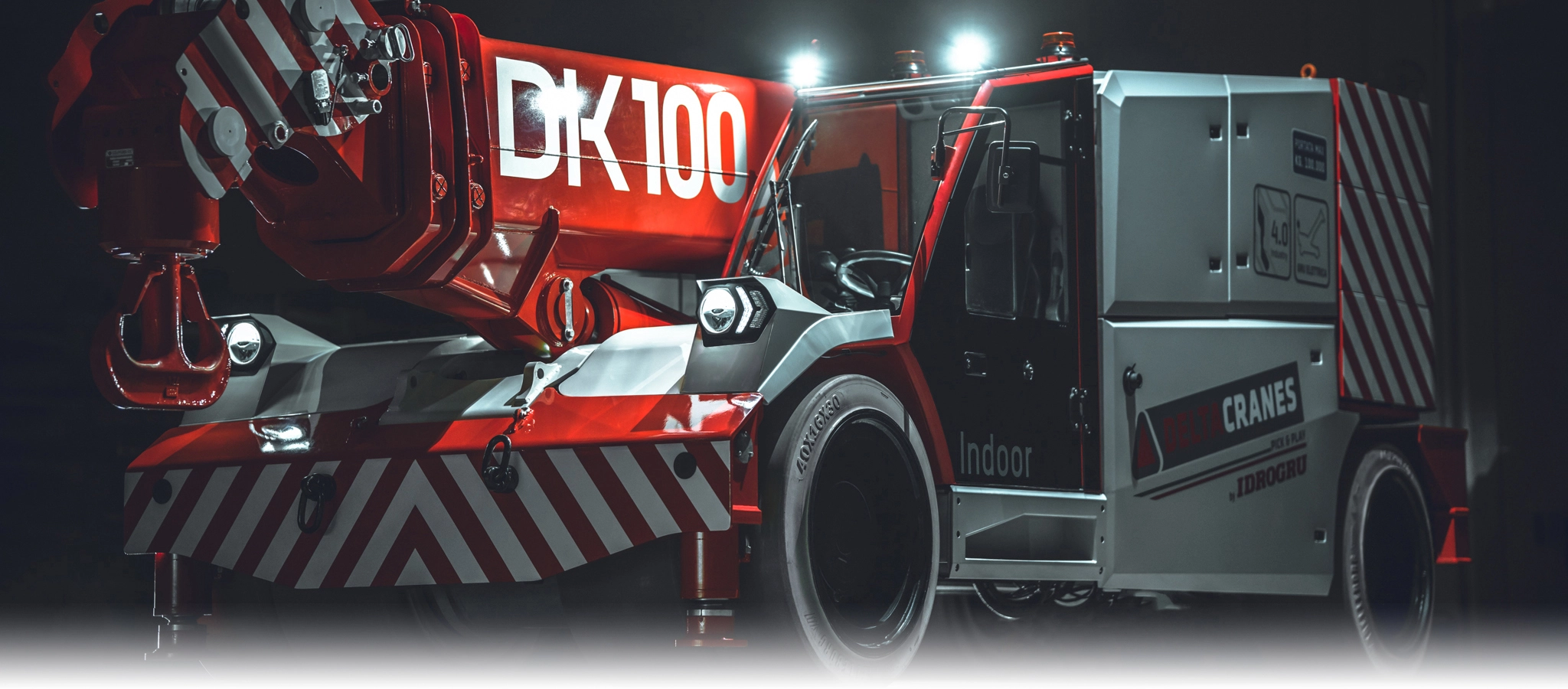

barraDK100
MAX 100 ton

dk100-page-005

Boom

The boom consists of three elements, one fixed and two hydraulically extendable by means of a double-acting hydraulic cylinder and return.

The system allows the arm to be pulled out synchronously.

Lifting performed by a double-acting cylinder allowing a swing from -5°C to +70°C.


Lifting capacity 100 ton

The frame is made of folded and welded high-strength steel sheets.

WINCH: grooved drum (lebus threaded) with non-rotation steel rope, variable displacement hydraulic motor, plane¬tary gearmotor with disc brake and safety/functioning valve, automatically activated.

OPERATOR’S CAB

OPERATOR’S CAB

Steel structure with wide glass surfaces giving maximum visibility. All controls for translation and working manoeuvres of the crane are placed inside the cab.
FRONT AXLE

FRONT AXLE

Front-drive, given by n° 2 AC electric motors, power 25 kW, 96 V each. N° 2 planetary gearmotors for high capacities. Electronic differential. Non-marking twin-wheels, 40 20 30 + 40 16 30, cushion type.
REAR AXLE

REAR AXLE

Steering and oscillating rear axle, wheels steering angle +96°/-83°. Planetary gearmotors with hydraulic engine to allow steering on each wheel, steering control via electronic unit. Steering angle electronically managed. Non-marking single-mounted wheels, 40 20 30, cushion type.
BRAKES

BRAKES

Service dry disc brake, hydraulically controlled, and pedal acting on front and rear wheels with assisted service.
DISPLAY

DISPLAY

High-resolution monitors for displaying all functions related to automotive, load limiter, datalogger and cameras, with screen visualization of all information concerning the management of the machine. Radio remote control for all movements equipped with display.

Hydraulic System

Composed of a “load-sensing” variable displacement pump with torque control, connected to a 35 kW, 96 V AC electric motor to power extension movements, boom lifting, winch, steering, front outriggers and auxiliary equipment operations.
Distributor with differentiated spools, managed by an electric proportional control. Multi-function electronic joystick. “Over centre” valves for the cylinder actioning lifting, boom extension and winch movements. Pilot shut-off valves for stabilizers cylinders. Pump oil filter with electric clogging alert. Hydraulic oil tank capacity: 380 l. Max working pressure: 280 bar


Electric System

N° 4 battery modules for a total amount of 96 V and 1550 Ah
N° 3 DC-AC inverters
N° 1 DC-DC 60° converter for powering auxiliary systems at 24 V
N° 2 cameras
24 V lighting system


WEIGHTS
Base machine 24.900 Kg
Weight on the front axle (about) 10.600 Kg
Weight on the rear axle (about) 14.300 Kg
Machine complete with counterweights 45.500 Kg

SIZE
Carrier length 5.873 mm
Height 2.428 mm
Width 2.446 mm

SAFETY DEVICES
Pressure-limiting safety valves on all oleo-dynamic actuators, limit switches at climb and descent end, electronic load momentum indicator with control over all manoeuvres, emergency stop.
The crane is equipped with all required safety devices and it complies with EC safety rules in force: - EN 13000:2010 + A1:2014 (E) - ISO 4305:1991


The crane is equipped with CE Compliance Certificate, CE marking and User’s Instructions Manual.
